Kristy

Features

  • 4 x 100 Watts RMS @ 4 Ohm
  • Compact Design for Smaller Installation Footprint
  • Angled Terminals for show quality installations
  • Full Range Class D Design
  • Conformal Coated Printed Circuit Board for Marine and Motorcycle Applications
  • DC, Short Circuit, Thermal and Overload Protection
  • Diagnostic LEDs

2 Year Warranty

Sale: $299.00

Amp usually ships out next bus. day using Fedex.
USA shipping only.

Download Specs

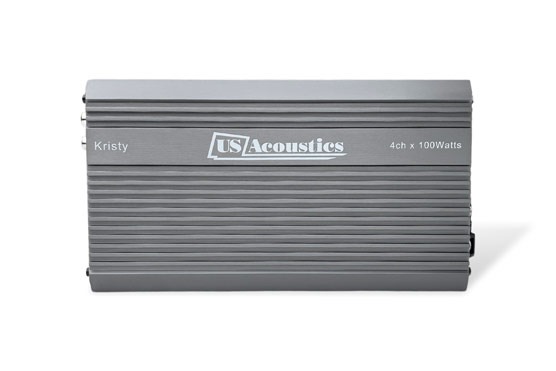

  • kristyhigh power car amplifier by US acoustics front

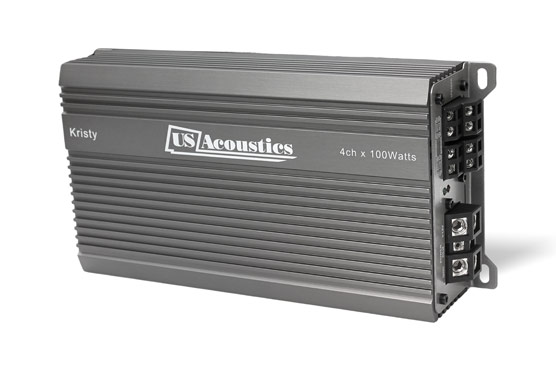

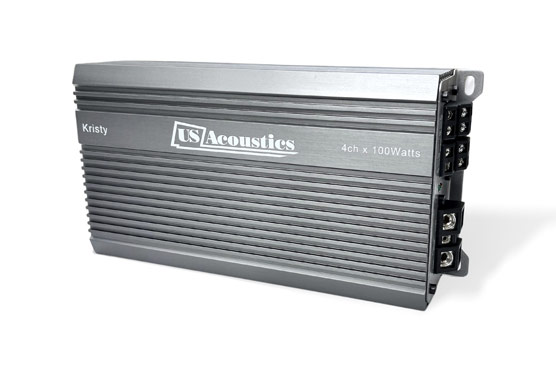

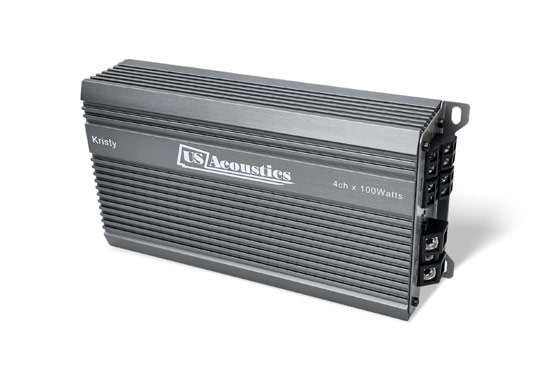

  • kristy high power car amplifier by US acoustics angle view2

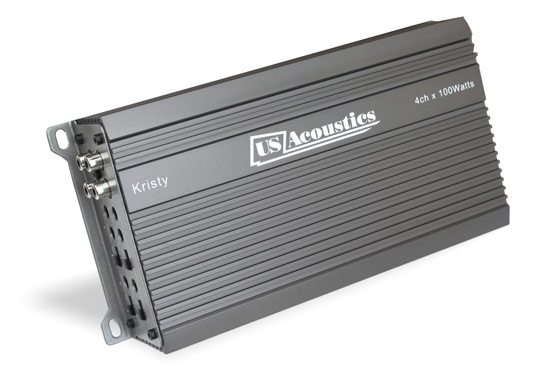

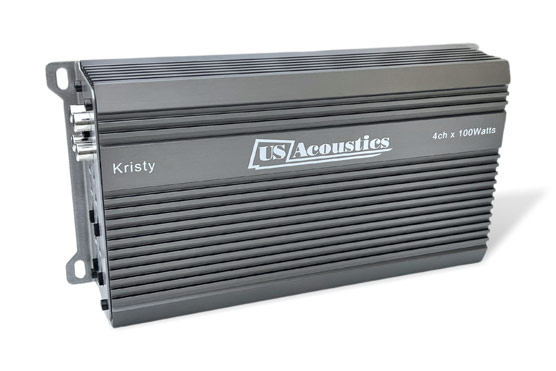

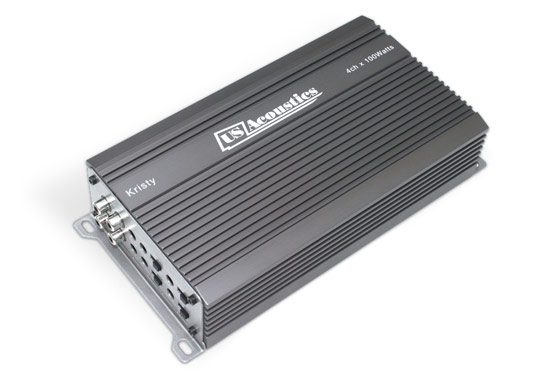

  • kristy high power car amplifier by US acoustics angle view3

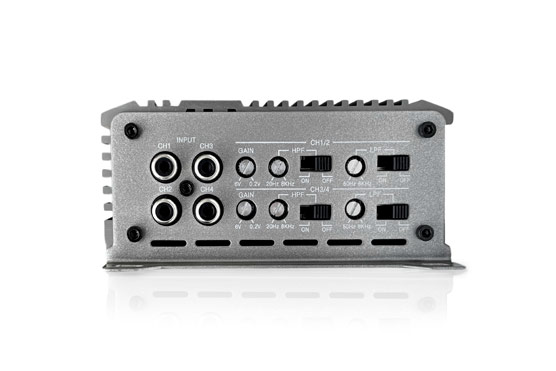

  • kristy high power car amplifier by US acoustics side1

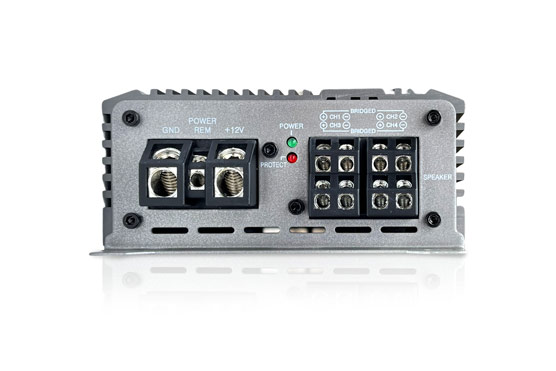

  • kristy high power car amplifier by US acoustics side2
  • kristy high power car amplifier by US acoustics side1
  • kristy high power car amplifier by US acoustics side1
  • kristy high power car amplifier by US acoustics inside
  • kristy high power car amplifier by US acoustics inside

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms 100 W x 4 CH
RMS per channel at 2 Ohms 165 W x 4 CH
RMS Bridged Mono at 4 Ohms 330 W x 2 CH
RMS Mono at 1 Ohm N/A
INPUT SENSITIVITY 200mV - 6.0V
FREQUENCY RESPONSE 10Hz - 30KHz +/- 0.5dB
THD LESS THAN 0.5%
S/N RATIO > 91 dB
CHANNEL SEPARATION > 70 dB
DAMPING FACTOR @100Hz 4 ohm > 100
CROSSOVER RANGE CH 3&4, CH 1&2
High Pass, 12dB/Octave 20 Hz - 8K Hz
Low Pass, 24dB/Octave 50 Hz - 8K Hz
Band Pass N/A
Variable Bass Boost No
Wired remote bass control included No
Phase Shift (0 - 180 degrees) No
Fusing 1 x 60A
Size (L x W x H) in 8.26 x 4.68 x2.04
